PANASONİC AFP7NSC
Yeni
PANASONİC AFP7NSC
0,00 USD

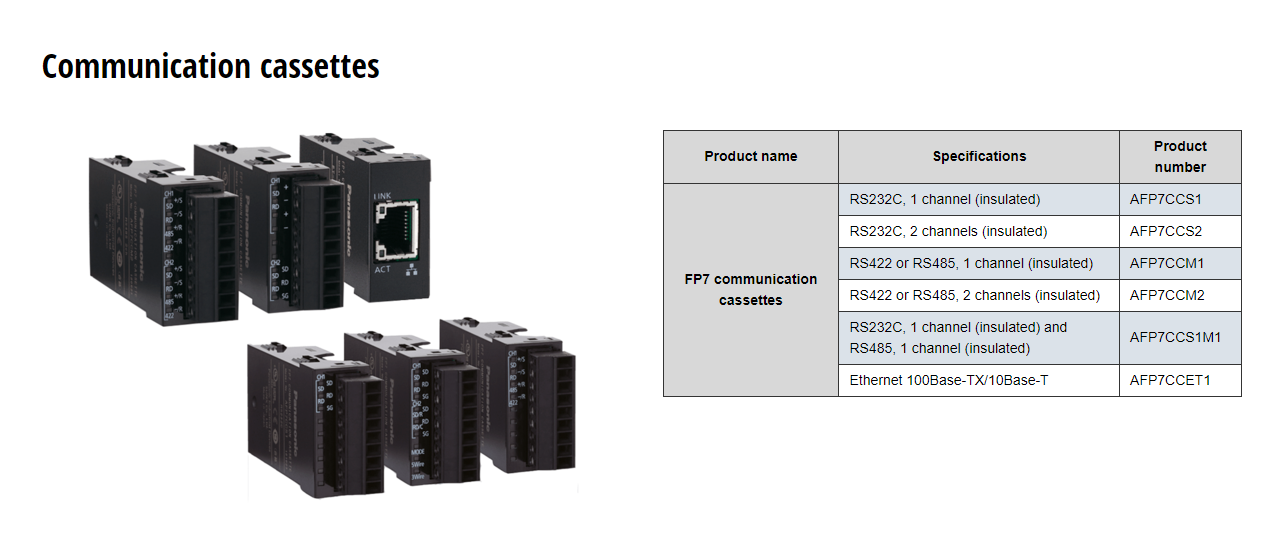

Seri Haberleşme Ünitesi 2 Kaset
| Ürün Kodu : | AFP7NSC |
| Kategori : | Plc'ler ve aksesuarlar, Fp7 serisi ve modülleri, Panasonic plc'ler ve aksesuarlar |
| Etiketler : | |
| Stok : | Sorunuz |
SPECIFICATIONS
| Item | Specifications |
|---|---|
| Product Number | AFP7NSC |
| Part Number | AFP7NSC |
| Number of communication cassette installations | Max. 2 cassettes |
| Number of installations to CPU unit | Max. 8 units |
COMMON GENERAL SPECIFICATIONS
| Item | Specifications |
|---|---|
| Ambient temperature | 0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉ |
| Ambient humidity | 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation) |
| Vibration resistance | 5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions |
| Shock resistance | 147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2) |
| Noise immunity | 1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator) |
| Operating condition | Free from corrosive gasses and excessive dust |
INDIVIDUAL GENERAL SPECIFICATIONS
| Item | Specifications |
|---|---|
| Rated voltage range | - |
| Current consumption | 50 mA or less (cassette not installed) |
| Net weight | 110 g approx. |
